FLOATSCAN-Hotgauge

Thickness measurement at the hot end

High-precision measurement of glass thickness and width at the hot end

Fitted directly after the float bath, FLOATSCAN-Hotgauge measures the thickness of the glass at the earliest possible point and provides high-precision measurement values for glass thickness and width down to the micrometer range, even for dark glass. This allows users to adjust the thickness as quickly as possible.

The system also increases process efficiency. Through its precision, it now enables glass production with lower thickness tolerance limits. This increases the quantity of marketable material and ensures a fast return on investment.

With its patented advanced measurement technology, FLOATSCAN-Hotgauge is not affected by glass thickness, bending or tilt. The user-friendly interface is intuitive and visualizes processes clearly with individually selectable display options.

  • Thickness measurement of the entire glass ribbon right after the floatbath
  • System can be installed above or beneath the glass ribbon
  • Supreme accuracy up to 0.0015 mm
  • Integrated temperature measurement via pyrometer

Download additional information

Automotive Overview brochure

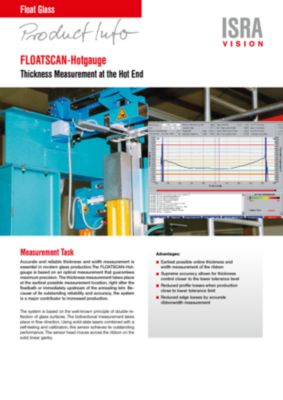

FLOATSCAN-Hotgauge flyer en

Filename
flyer-floatscan-hotgauge-glass-en.pdf
Size
445 KB
Format
application/pdf
Download

FLOATSCAN-Hotgauge flyer cn

FLOATSCAN-Hotgauge flyer cn
Filename
flyer-floatscan-hotgauge-glass-cn.pdf
Size
348 KB
Format
application/pdf
Download

Discover the full range of applications for FLOATSCAN-Hotgauge

Float Glass

Achieve precise measurement values for glass thickness & width at the hot end. Increase production efficiency & reduce thickness tolerance limits.
Floatglass
