Inspection solutions for battery cell production


  • 100 % inspected cells for perfect detection and classification
  • Inspection of material quality over the entire web length and width
  • Reduced operational costs and streamlined manufacturing processes
  • Utmost product safety to avoid recalls and incidents
  • Minimized waste, reduced raw material and energy consumption

Reliable automated inline inspection in battery cell production

Battery technology, which is expanding rapidly worldwide, forms the core of several innovative future technologies. In particular, the lithium-ion battery, with its high energy density, has established itself as the leading electricity storage technology in recent years. Without the powerful lithium-ion batteries, there would be no electric cars (EV's), smartphones, laptops. As production errors and safety failures cannot be completely ruled out in this context, meaning that recalls make the headlines from time to time. Product liability cases can then quickly become a financial liability and also cause damage to the company's image.

The high-precision SMASH inspection system ensures consistency throughout the entire value chain - from coating to slitting/cutting to winding/unwinding.

Discover our solutions - Separator film inspection

Back top
Separator film inspection
Electrode coating inspection
Cell inspection system
Production Analytics
Service & Training
Contact Us

Inspection of the separator film of lithium-ion batteries

The separator film is an indispensable component of the lithium-ion battery. This membrane separates the anode and the cathode, thus enabling the lithium ions to be exchanged. The separator is also an essential safety element to prevent a short circuit in the battery and plays a key role in the speed and lifetime of the cells.

After extrusion, stretching, and coating, the sophisticatedly treated material of the separator film must be carefully inspected to ensure 100% product quality and safety.

The ISRA VISION way to optimal detection

During separator film production, the ISRA VISION camera system detects and classifies the smallest defects in real-time at full web speed. In addition, ISRA's advanced real-time MultiScan High-Dynamic-Range (HDR) technology enables high contrast inspection to detect even thin spots and holes. ISRA VISION's inline inspection systems also inspect the films in the downstream stages of the process chain, such as the slitting units or the rewinder.

Benefits

100% inspection and defect classification

Inspection of material quality over the entire web length and width

Avoidance of critical defects that can lead to a short circuit and fire

Condition/health monitoring to achieve 100% monitoring of the process and the system itself

Flawless material for the next process step

Waste is reduced, and marketable production volume is increased

Product properties are fully monitored and documented

Plant operators can make product changes efficiently and cost-effectively

Features, typical defects and technical data

Features

  • 100 % inspection of hole defects with advanced classification

  • Monitoring of PVDF-coating quality

  • High Dynamic Range technology (HDR) to distinguish between holes and thin spots

  • Real-time web inspection camera and intelligent high performance LED

  • Compliant to highest battery standards

  • New dual exposure technology: Differentiation between holes, missing coating, gels, contaminations, and black spots with utmost precision, done by smart dual exposure mode

Typical defects

  • Holes

  • Metal particles

  • Slitting defects

  • Thin spots

  • Coating defects

  • Oil drops

  • Black spots

  • Water drops

  • Large scratches

  • Repeating defects

Technical data

  • Line speed: 120 – 250 m/min.

  • Line width: Main Lines: 4500 – 7000 mm

  • Line width: Slitting Lines: 1200 – 1400 mm

  • System resolution:  50-100µm

How to get the most out of your battery film inspection.

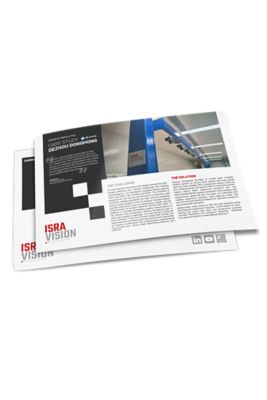

Learn, how Dezhou Donghong Ltd. achieved 100 % battery film inspection with ISRA VISION's SMASH system.



get Success Story

Download additional information

Discover our solutions - Electrode coating inspection

Back top
Separator film inspection
Electrode coating inspection
Cell inspection system
Production Analytics
Service & Training
Contact Us

Inspection of the electrode coating of lithium-ion batteries

High-performance battery electrodes are a critical component of lithium-ion cells. The coated electrode materials for cathodes and anodes have to meet high requirements for energy efficiency, storage density, and safety.

Especially after the demanding processing in the roll press, the aluminum and copper-coated electrode foils have to undergo precise quality inspection. The production goal is to achieve a particularly smooth and closed coating as well as 100%-layer detection of both coating surfaces.

The ISRA VISION way to optimal detection

The SMASH inspection system reliably detects the entire material quality for damage such as streaks, holes, impurities, and air bubbles. Additionally, precise edge detection and alignment within the calender are guaranteed.

Benefits

100% inspection and defect classification

Inspection of material quality over the entire web length and width

Avoidance of critical defects that can lead to a short circuit and fire

Condition/health monitoring to achieve100% monitoring of the process and the system itself

Flawless material for the next process step

Waste is reduced, and marketable production volume is increased

Product properties are fully monitored and documented

Plant operators can make product changes efficiently and cost-effectively

Features, typical defects and technical data

Features

  • 100% defect detection and classification

  • Real-time-measurement of alignment for utmost coating precision

  • All-in-One-high-speed Camera with highly optimized LED illumination

  • Highly accurate coated area alignment measuring

  • Alignment monitoring: top to bottom in CD and MD

  • Robust frames for every environment

  • SMASH is robust against dark/bright changes in the material (between electrode and membrane)

  • Track and Trace on single electrode level (optional)

  • Real-time Multi-Line monitoring and reporting solution with EPROMI 2.0

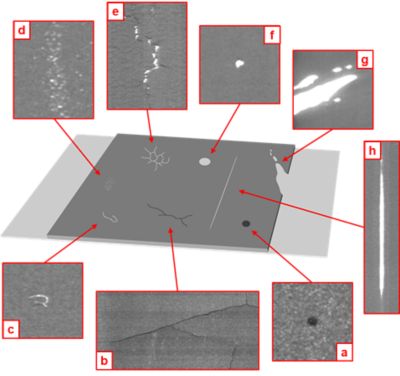

Typical defects

  • Missing coating

  • Damages of coating

  • Spots from contaminations pressed into coating during calendering

  • Scratches

  • Coating spots on the edges

  • Edge cracks

  • Wrinkles

  • Scratches and flaws in the coating

  • Foreign particles

  • Holes / Pinholes

Technical data

  • Web width: 300 – 1000 mm

  • Line speed: Typical 50 m/min

  • Resolution: 25 - 100 µm

Download additional information

Discover our solutions - Cell inspection system

Back top
Separator film inspection
Electrode coating inspection
Cell inspection system
Production Analytics
Service & Training
Contact Us

Inspection of lithium-ion battery cells

High-performance battery cells come in three different designs: Pouch cells, cylindrical cells, and prismatic cells. Since these cells are densely packed in battery assemblies for electric vehicles, the quality and integrity of the battery cells directly affect the road safety of electric vehicles.

Recalls due to defective cells are costly and can significantly impact an automaker's brand reputation. Therefore, battery suppliers and manufacturers of electric vehicles have a great interest in 100% product testing and complete documentation.

The ISRA VISION way to optimal detection

ISRA VISION has developed an innovative solution for the inspection of battery cells to provide comprehensive process and quality control. This inline and offline inspection solution performs a complete 360° inspection of the cell to ensure 100% inspection and the delivery of only flawless cells.

In addition to dimensional inspection, the cell inspection also detects surface defects and contamination. The system can also reliably check barcodes and data codes. Automatic camera calibration and an integrated GigE Vision high-speed interface make it particularly easy to set up the inspection system and integrate it into a fully networked smart factory at full production speed.

Benefits

100% inspection and defect classification

Inspection of material quality over the entire web length and width

Avoidance of critical defects that can lead to a short circuit and fire

Condition/health monitoring to achieve100% monitoring of the process and the system itself

Flawless material for the next process step

Waste is reduced, and marketable production volume is increased

Product properties are fully monitored and documented

Plant operators can make product changes efficiently and cost-effectively

Features, typical defects and technical data

Features

  • Detect all surface defects and monitor the dimensions of the cell

  • Reliable classification of defect at corners and edges

  • Different illumination concepts

  • Five side inspection

  • Detection of 2D / 3D surface defects

  • Dimension check

  • Inspection of Barcodes / OCR

  • Suitable for inspection prior to degassing (= inspection of semi-final pouch) and the inspection of the final pouch after degassing

Typical defects

  • Dents

  • Bumps

  • Scratch

  • Folding defects

  • Edge cracks

  • Sealing defects

  • Contamination / foreign objects

Technical data

  • Tact rate at automotive: ca 15ppm

  • Required tact time: 4 Sec.

  • Target defect size:  > 50um

Download additional Information

Discover our solutions - Production Analytics

Back top
Separator film inspection
Electrode coating inspection
Cell inspection system
Production Analytics
Service & Training
Contact Us

Production analytics - Data-driven production efficiency

The web-based production analytics platform allows you to check the system status of all production lines at a glance or analyze production data in detail. With the quality management system, you analyze historical data, monitor current inspection data in real-time, and identify future trends in your production process.

Optimization of production

Dashboards allow you to compare production line and product data onsite or remotely, providing key insights for optimization. This enables you to make informed professional decisions along your value chain to increase the product quality as well as profitability. You can continuously track the progress of optimization measures and present them with visualized advanced reports.

Early detection of production defects

Detect and quickly identify the cause of threshold value violations at every stage of production with live status information and automatic alerts. As a result you can quickly resolve production defects, shorten downtime, and reduce production costs.

Predictive maintenance

You can prevent potential system failures by analyzing real-time data from the sensors and monitoring systems. This allows proactive planning of maintenance, based on the actual condition of the machines, instead of following a fixed schedule. This data-driven approach saves costs through reduced downtime and increased overall productivity, as well as longer production line life.

Your benefits

  • Time-saving multi-line overviews, one view for all quality-related information
  • Minimize downtime by monitoring system health data
  • Faster reaction to quality issues with quality data monitoring
  • Fast elimination of production defects, reduction of production costs
  • Improved maintenance for reduced downtime, higher overall productivity and longer production line life

Key features

Overview on production data and plant status

Web-based solution, no client software installation required

Department oriented dashboards, customer specific adaptations are possible

Live insights from real time data

Threshold monitoring and alerting

Open to integrate relevant third-party data and export data to the customer's systems

Discover our solutions - Service & Training

Back top
Separator film inspection
Electrode coating inspection
Cell inspection system
Production Analytics
Service & Training
Contact Us

Customer service & training

Service

For the efficient and future-proof operation of your production systems our highly qualified service teams support you globally in all matters. We provide the implementation, maintenance and servicing as well as the analysis and optimization of your systems - quickly, reliably, 24/7.

Visit our service center and request your customized service solution.

Furthermore, learn in the ISRA VISION Academy how our competent trainers always keep your employees up to date with the latest knowledge so that system operators, product engineers and quality managers become real inspection experts.

Visit our ISRA VISION Academy and book your individual and scalable trainings.

Contact us
