Spareparts

Server-PC Dell Poweredge T410 for espresso-SI

S10-9075

1x Intel Xeon Quad Core E5504 (4x 2.0 GHz), 2GB RAM
160GB System disk space for OS and database (2x 160GB SATA disks, RAID1)
1TB image disk space (4x 250GB SATA disks (No RAID))
3x Gigabit/s Ethernet TX
DVD-ROM

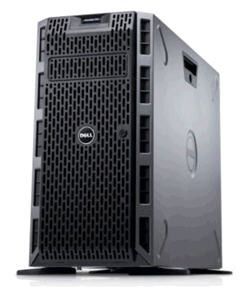

Server-PC Dell Poweredge T420

AX 207499

E5-1410 CPU 2,8 GHz, 8GB RAM
2x 300GB System disk space for OS and database (net 300GB Nearline SAS, RAID1)
3x 1TB image disk space (net 2TB, RAID5)
Graphic Card 256 Mbyte
4x Gigabit/s Ethernet TX
DVD-RW
Power Redundancy type

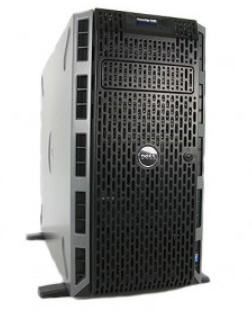

DataServer Large Dell Poweredge T430

1-0917-PRE-ITG

E5-2620 v3 CPU 1x Intel Xeon 6-Cores, 2,4 GHz, 16GB RAM
2x 600GB System disk space for OS and database (net 600GB Nearline SAS, RAID1)
6x 3TB image disk space (net 15TB Nearline SAS, RAID5)
2x Gigabit/s Ethernet TX
DVD-ROM
Power Redundancy type

Camera-PC for SensorSystem X

S10-9001

Revamp-Server-PC for SensorSystem VIII

S8-9000

(including installation HTS4.3 SW and Supervision)

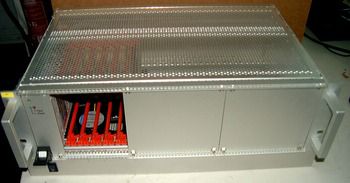

Compact PCI crate, 5 slots

S10-9073-01

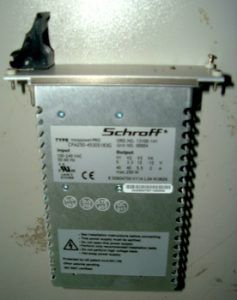

Power Supply for Compact PCI Crate

S10-9073-04

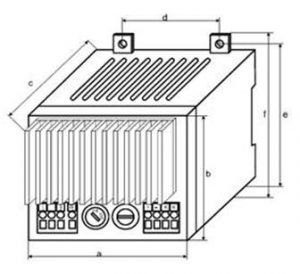

Profibus Power Supply Robers 170V DC 1,2A Steck/Temp.Sch.

170577

Cooling Device for Cold Mill Sensors (for combined Bright Field / Dark Field Sensors)

S10-9032-CM

Cooling Device for Cold Mill Sensors (for Bright Field and Bright Dark Field Sensors)

S10-9032-CM

Set of Components Junction Box Cold Mill

S10-9003-CM

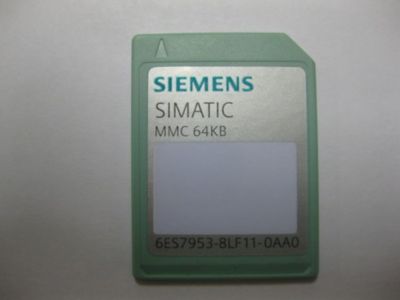

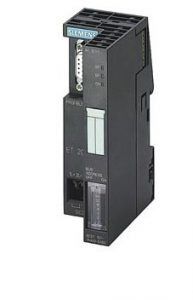

Flash Memory for ET200

S10-9003-CM-FM

Set of Components Cold Mill Sensor

S10-9061-CM

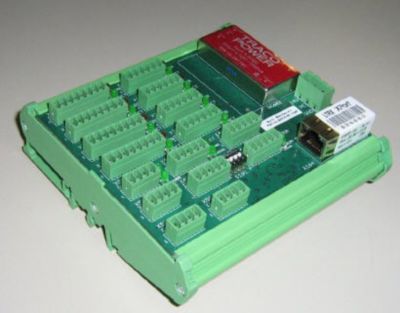

SyncBox

S10-9012

Specification: ISRA-Parsytec SyncBox 4.0

Camera Module eSMASH incl. Lens and Adapter

S10-9015-SM

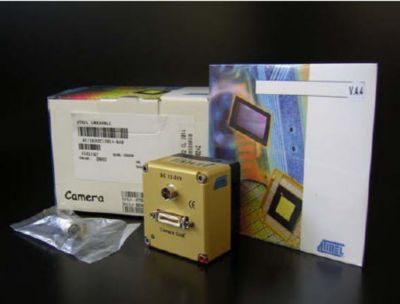

specification: AVIIVA SM2 2k Camera with Schneider COMPONON Lens 50mm 2,8

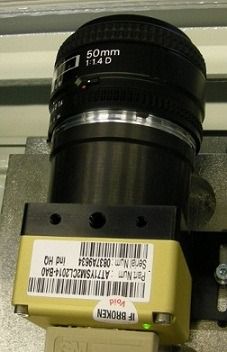

Camera Module LineScan incl. Lens and Adapter

S10-9015-LS

specification: AVIIVA SM2 2k Camera with Nikon Lens 50mm 1:1,4
Product: eSI

Camera Module eSMASH incl. Lens and Adapter

S10-9015-SM

specification: AVIIVA SM2 4k Camera with Nikon Lens 50mm 1:1.4
Product: eSM

Camera Module eSMASH w/o Lens and Adapter

S10-9015-SM-030-CAM or S10-9015-SM-030-CAM or S10-9015-LS-SM2-005-CAM

Specification: AVIIVA SM2 2k Camera only

Camera Module eSMASH w/o Lens and Adapter

S10-9015-SM-024-CAM

Specification: AVIIVA SM2 4k Camera only

Linescan Camera’s Lens incl. Adapter

S10-9015-SM-030-LEN

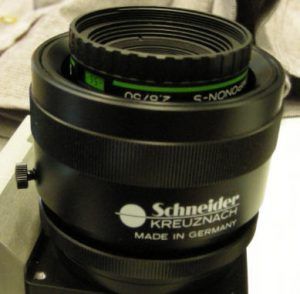

Specification: Schneider COMPONON Lens 50mm 2,8

Linescan Camera’s Lens incl. Adapter

S10-9015-LS-SM2-005-LEN or S10-9015-SM-024-LEN

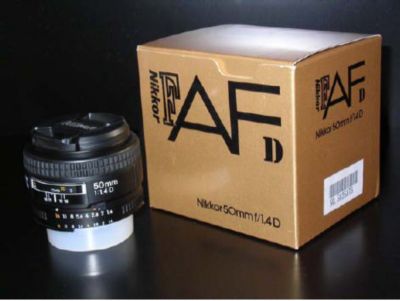

Specification: Nikon Lens 50mm 1:1,4

Linescan Camera’s Lens incl. Adapter

S10-9012-SM-031-LEN

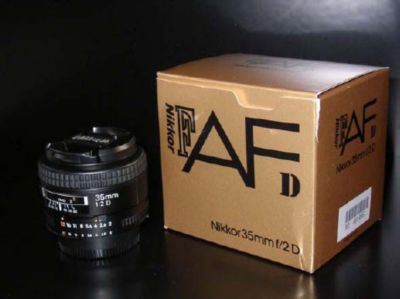

Specification: Nikon Lens 35mm 1:2.0

LED Module eSMASH

S10-9017-WI

specification: Board LED 288 Version 2
Product: eSM

Spare Board LED 288 version 3 (incl. Silicon film)

AX 200636

LED Interface Module Line Scan

S10-9091

specification: Board LED Con. 128-RJ45V1.0
Product: eSM

LED LED Collimater Lens 1738

169358_1738

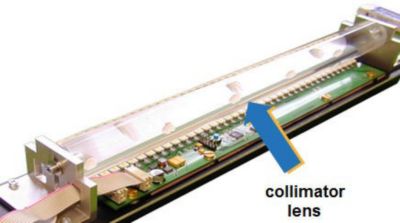

L=1738mm Pre-cut lens D=30 for LED 288
including 2EA x 163794 Lense Holder
Product: eSI-DS

embedded Image Processing Controller eSMASH-2

S10-9100-SM-01

Product: eSM

Image Processing Module SWP

S10-9101-SM-01

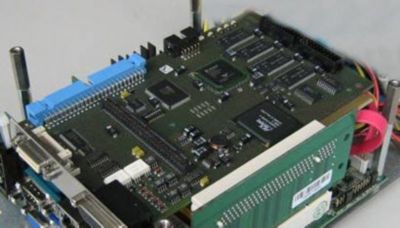

specification: Board PC Smash Web V1.1 CL swp CL
Product: eSM

SPS I/O Adapter

S10-9153-01

specification: Board SPS I/O Adapter V2.0 Kurzschlussfest
Bracket SPS-IO SmartPc
Product: eSM

Gigabit ETN Switch, Junction Box

S10-9070-04

specification: NS 208-G
Product: eSM

IONet module

S10-9150

specification: Steuermodul MKC IONet-1
Product: eSM

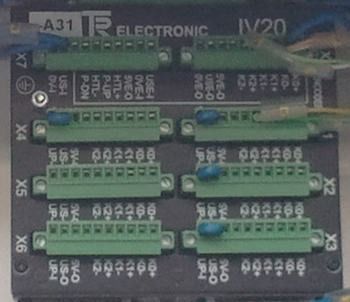

Pulse Connverter IV-20

S10-9151

Product: eSM

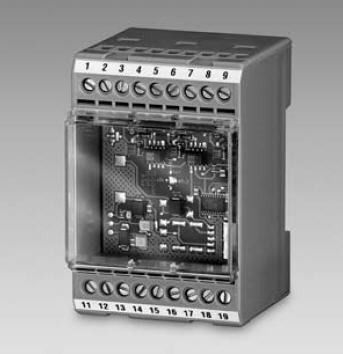

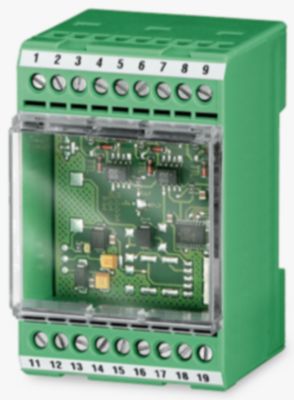

Digital Converter HEAG 152 HTL>TTL

S10-9003-SM-01

Product: eSM

Digital Converter HEAG 153 TTL>HTL

S10-9003-SM-02

Product: eSM

Fluorescent lamp for Smash Tubeline

S10-9152-01

specification: FA96T12/CW/VHO-BP/30/I
Product: eSM

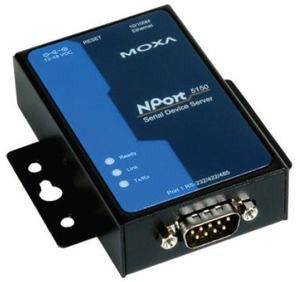

Moxa NPort 5150

Ax.179564

Product: eSM

Set of Components Junction Box

S10-9003-SM

specification: (one of each electrical component inside the cabinet like fuses, relay, opto coupler, etc.)
Product: eSM

Ballast basic-12 for SMASH Tubeline

S10-9154

Product: eSM

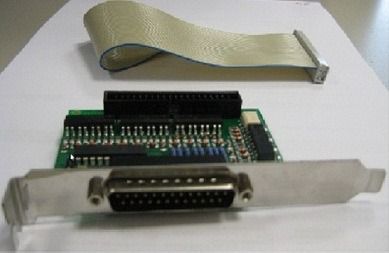

SPS I/O Adapter

S10-9153-01

Product: eSM

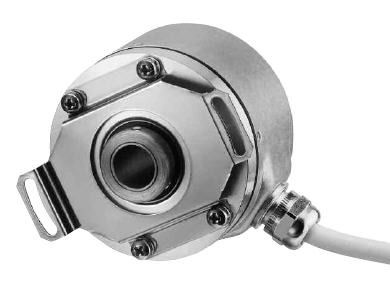

Incremental Encoder with high resolution for roll mounting

1-8001-5-RI-58-F

Product: eSI-DS, eSM

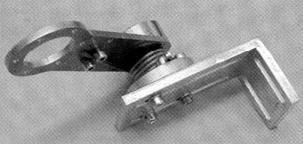

Encoder Mounting Kit for Drehgeber WDG58B

Ax. 170248

Product: eSI-DS, eSM

Camera Module espresso SI Coldmill JAI

S10-9015-CM-JA

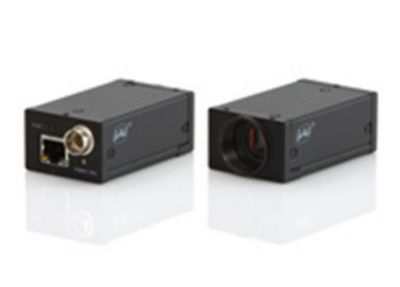

specification: Camera JAI CM-041 GE GigE
Product: eSI

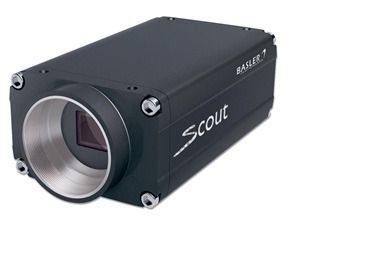

Camera Module espresso SI Coldmill Basler Scout

S10-9015-RV-170528

specification: GigE Basler Scout scA780-PAR FW2
Product: eSI
(Camera w/o lens and filters w/o holder, not calibrated)

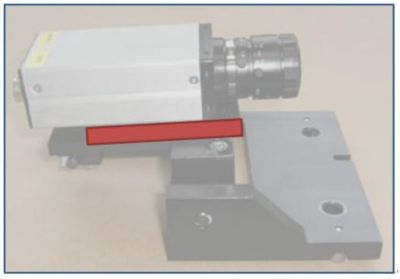

Camera Module exchange kit espresso SI (up to 8 cameras exchange)

S10-9015-RV-8-KIT

specification: BASLER Adapter Plates and SyncCable
Product: eSI

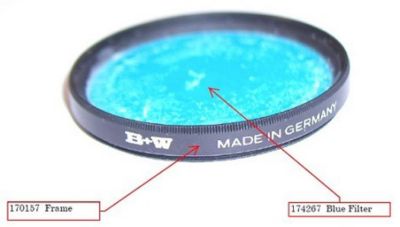

eSI Hotmill Camera Blue filter

S10-9015-HM-BF

Product: eSI
(174267 Blue filter, and 170517 Frame for Blue filter)

UPS 2100W

164768 UPS APC 230VAC 50Hz 2100W

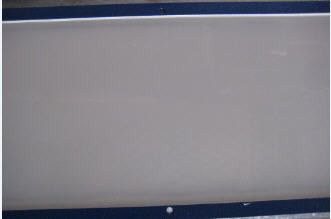

eSI CM Milky Glass

170935 / 105673 Spare Glasses Illumination Beam CM Milky

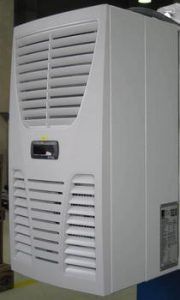

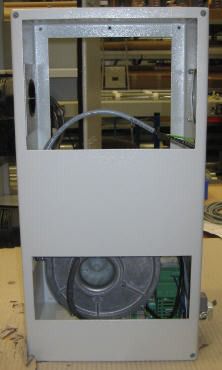

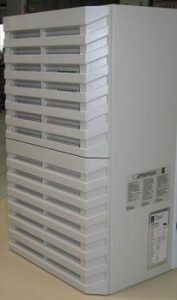

Wall-mounted Cooling Unit

154107 230VAC 1200/1500W 400x9

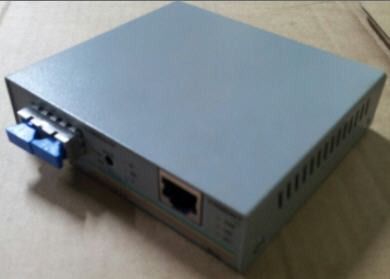

Media Converter Unit

SM1-9085-02

Media Converter 170242

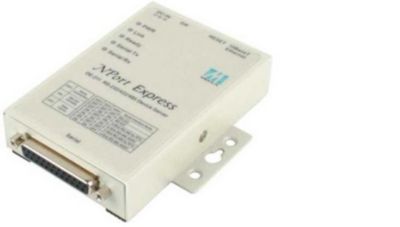

MOXA DE-211, 1 Port

170162

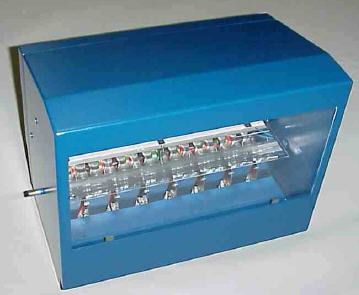

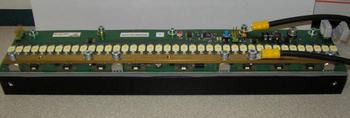

Module LED Illumination Hot Mill

187077

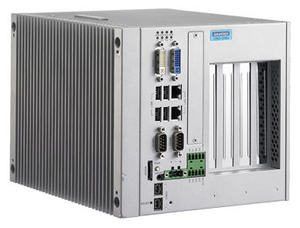

PC Pyramid SURFACE MASTER 1U, 4xLAN

201748

Board LED classic Line V1.X Einspeisung

199160

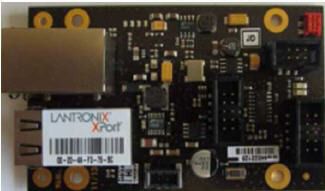

Board LED smart Controller V2.X

202405

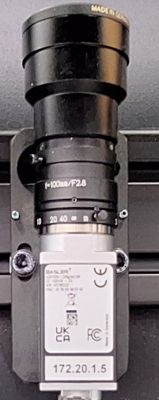

Line Scan Camera Basler racer raL2048-48gm

201752

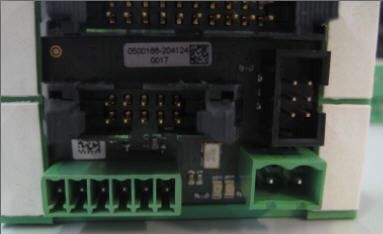

Board Camera-Bus Multiplexer Racer V1_x

204124

Matrix Camera GigE Basler ACE acA1920-50gm ISR

215158

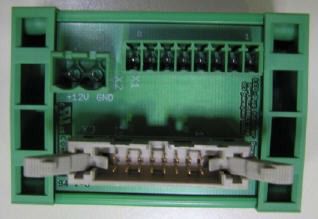

Matrix LED Bus Adapter

170516

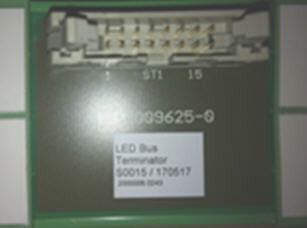

Matrix LED Bus Terminator

170517

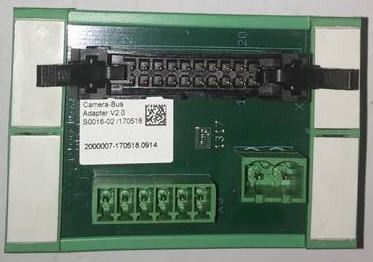

Camera Bus Adapter

170518

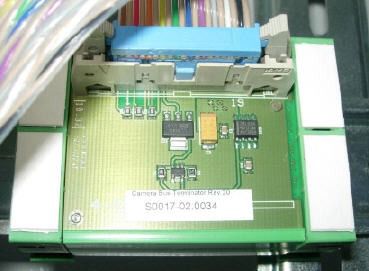

Camera Bus Terminator

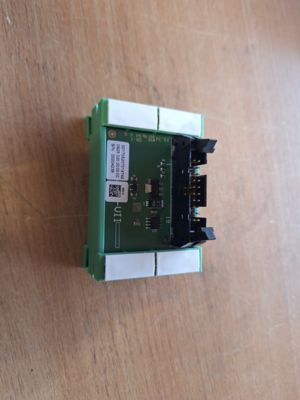

170520

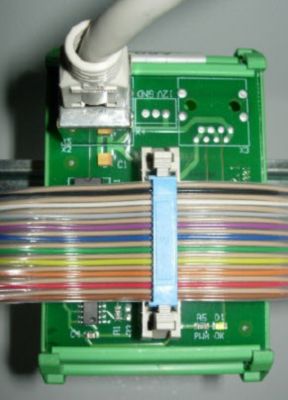

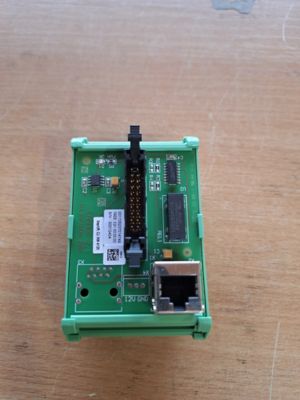

Camera Bus Converter Module 2.1

170523

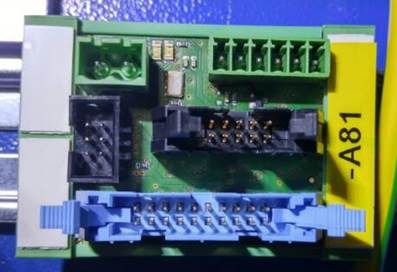

Camera Bus Multiplexer ACE

198619

Set of camera for each line

223213/003 ‘Camera Module Cold Mill, incl. camera, lens, filter, holder; pre-calibrated & ready to use (GigE Basler ACE acA1920-50gm ISR, 16mm)’ for matrix sensor of POSCO PH CGL, 1HAPL, 2HAPL

202408/050-T ‘Camera Module Line Scan, incl. camera, lens, filter, balanced(Basler racer raL2048-48gm, 50 mm)’ for line scan sensor of POSCO PH CGL

223213/004 ‘Camera Module Cold Mill, incl. camera, lens, filter, holder; pre-calibrated & ready to use (GigE Basler ACE acA1920-50gm ISR, 25mm)’ for matrix sensor of POSCO PH APF

202822/035-T ‘Camera Module Line Scan, incl. camera, lens, filter, balanced(Basler racer raL4096-24gm, 35 mm)’ for line scan sensor of POSCO PH APF

183934/002 ‘Camera Module Cold Mill, incl. camera, lens, filter, holder; pre-calibrated & ready to use (GigE Basler scA780-PAR FW2, 16mm)’ for matrix sensor of POSCO PH #2CAL

202408/025 ‘Camera Module Line Scan, incl. camera, lens, filter, balanced(Basler racer raL2048-48gm, 25 mm)’ for line scan sensor of POSCO PH #2CAL

Housing with Papst fan for matrix sensor

178717 230VAC / 0.75KW

Fan housing picked up AC 1KW with Papst fan for matrix sensor

178166 230VAC / 1KW

RAL5010 PG glass frame with VSG matt 2170 OFV (225159)

Project no. 106199

AX 225159 / RAL5010 PG   glass frame with VSG matt 2170mm OFV / powder coating 60-100µm

RAL 5010 raw structure, degree of gloss 75% +/-10%

IAI Robo Cylinder RCA-RA4R

RAL5010 PG glass frame with VSG matt 2170mm OFV / powder coating 60-100µm

AX 225159 : RAL5010 PG glass frame with VSG matt 2170mm OFV / powder coating 60-100µm
RAL 5010 raw structure, degree of gloss 75% +/-10%

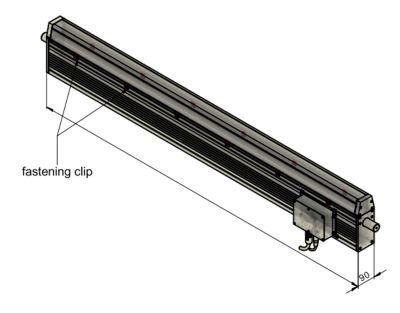

Classic Line Light(Upgrade)

two lens options (Working Distance 50mm, WD 150mm)

Illumination length in 288mm increments

As bright as smart 288

As bright as Metabright

Dimmable (8bit)

No fan cooling up to 45°C

Controlling of all common illumination systems( also LED288 V2 Type)

Can be configured via TCP/IP (Ethernet)  or Framegrabber* (SWP Il)

Fast Differential Input (FDI) for communication* and trigger

24V SPS Trigger

DAC Output for dimming

Daisy Chaining *

ADC Input for analysis (voltages, temp.)

Trigger Error Detection & Diagnose

Module Type Detection (Startup Check)

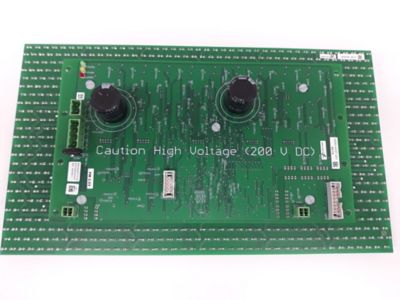

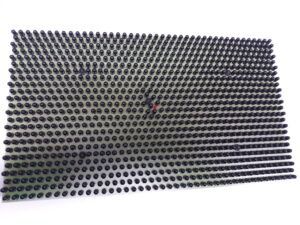

Modul LED IR Rev 6.4.4 (243522)

Modul LED IR Rev 6.4.4 (243522)

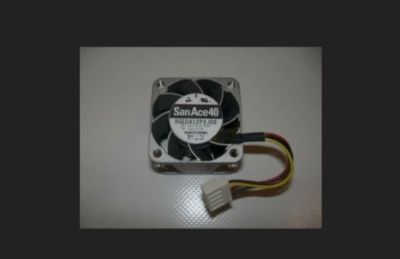

274573 Fan 40x40x28 für ISRA 1U Pyramid PC 232577

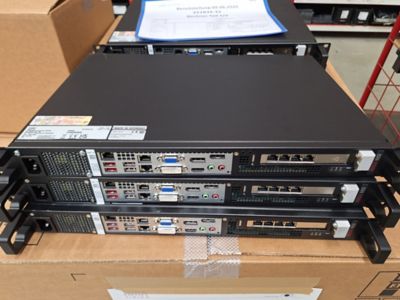

Spare Pyramid PC SURFACE MASTER (262455-S02)

Replacement for the 201748, with Win7 & Power cord extenstion to reach the frontal power connector
